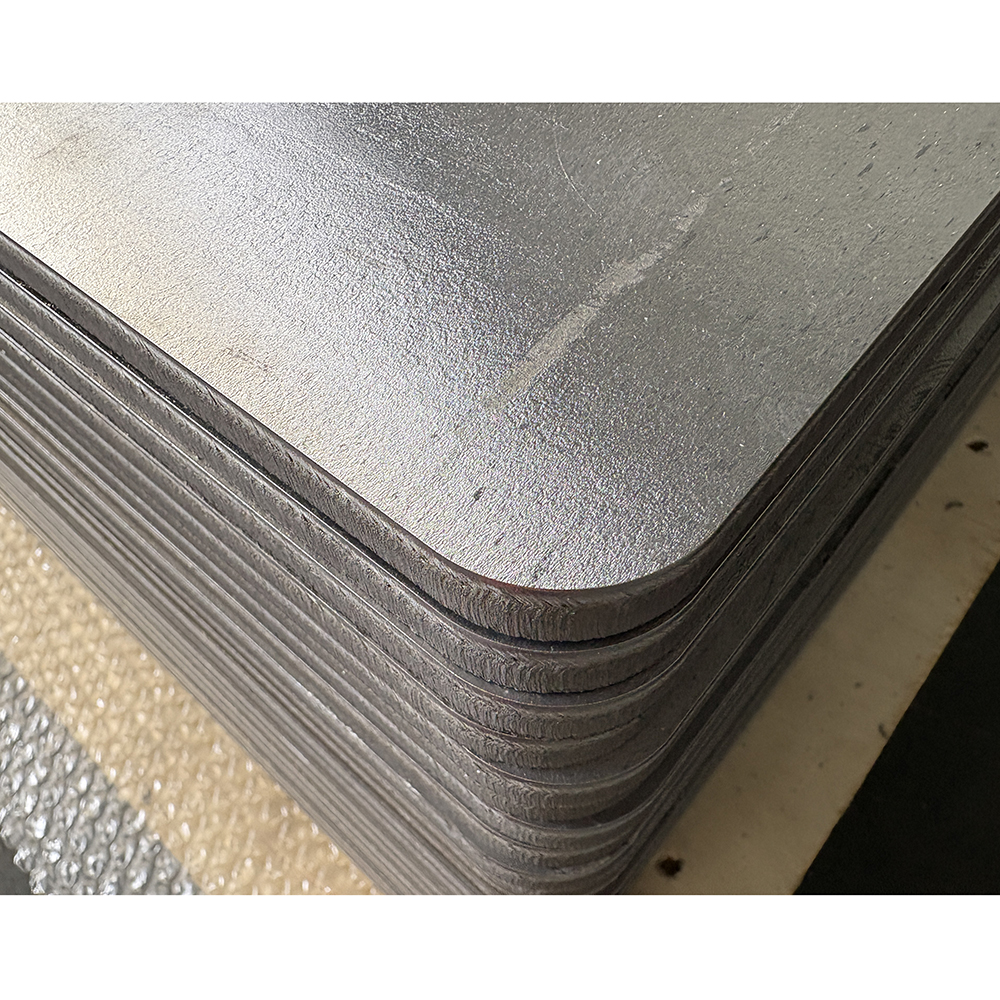

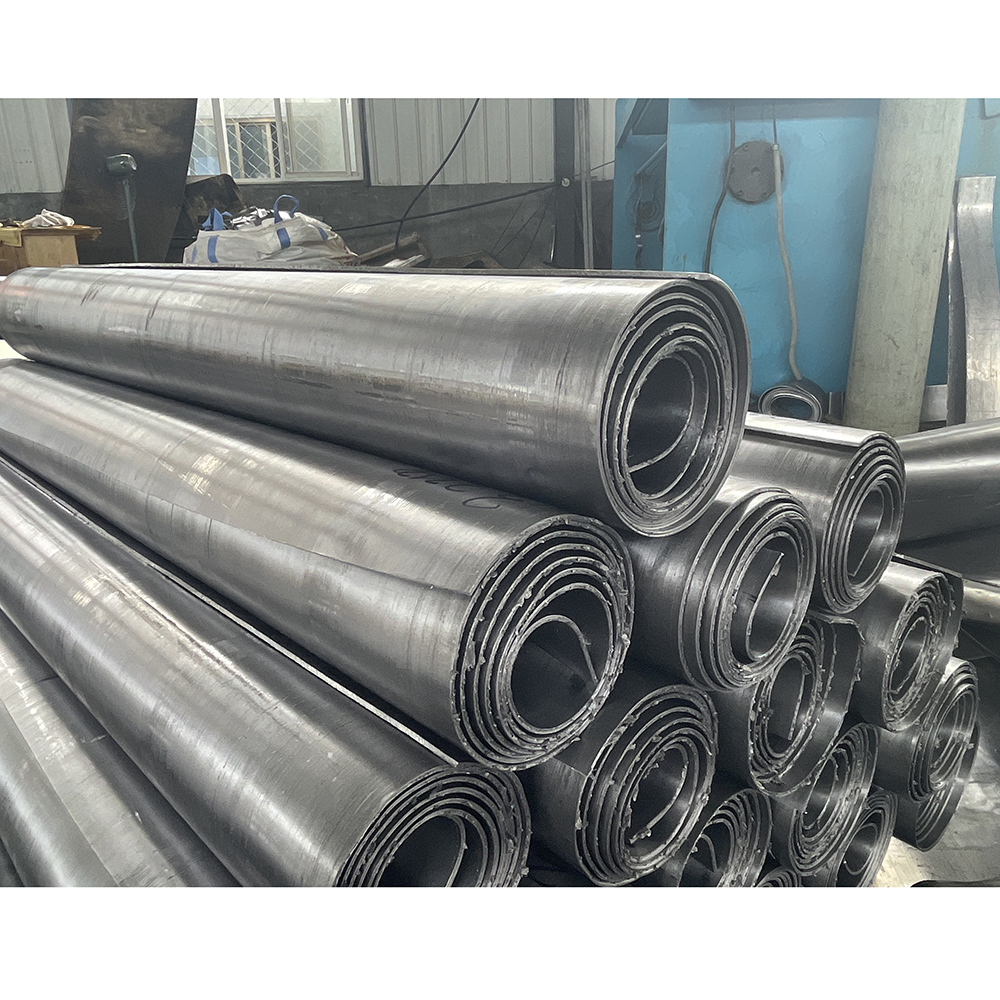

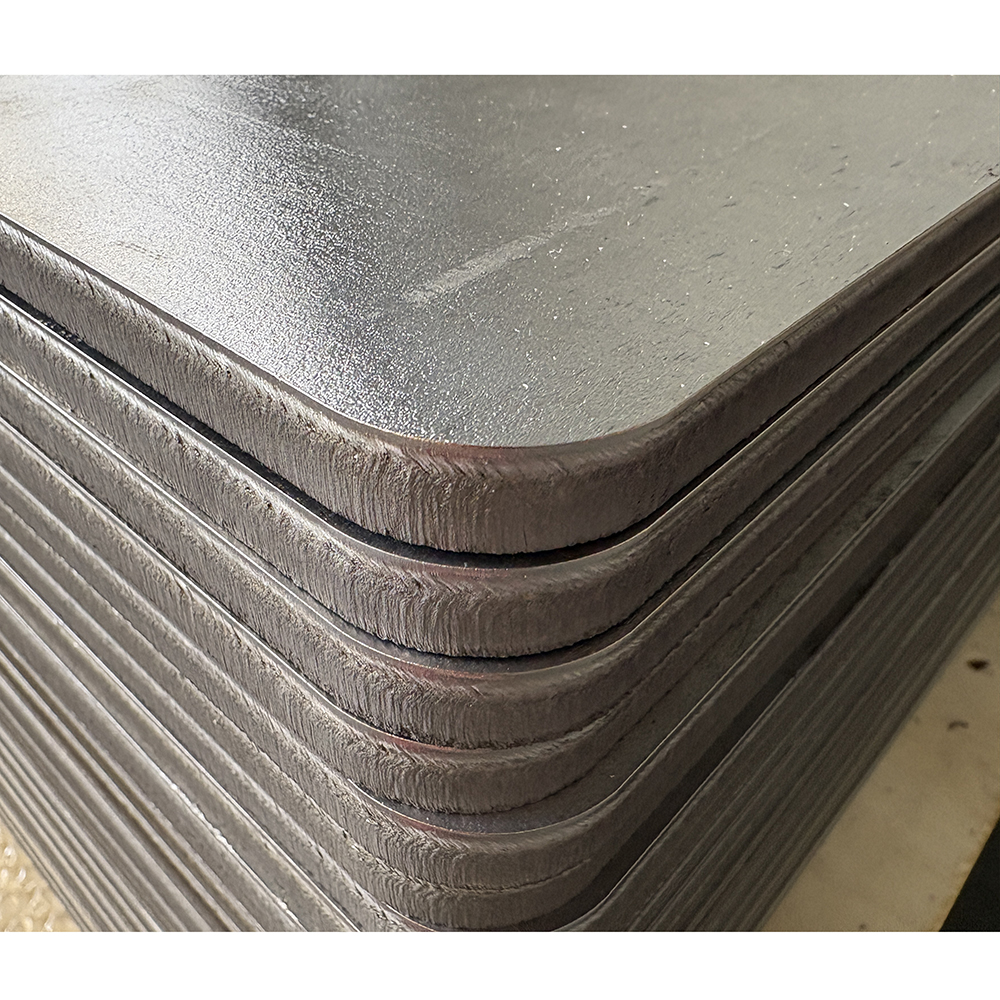

Lead Plate
ST-Shield
| Availability: | |
|---|---|
| Quantity: | |
|
Product Description

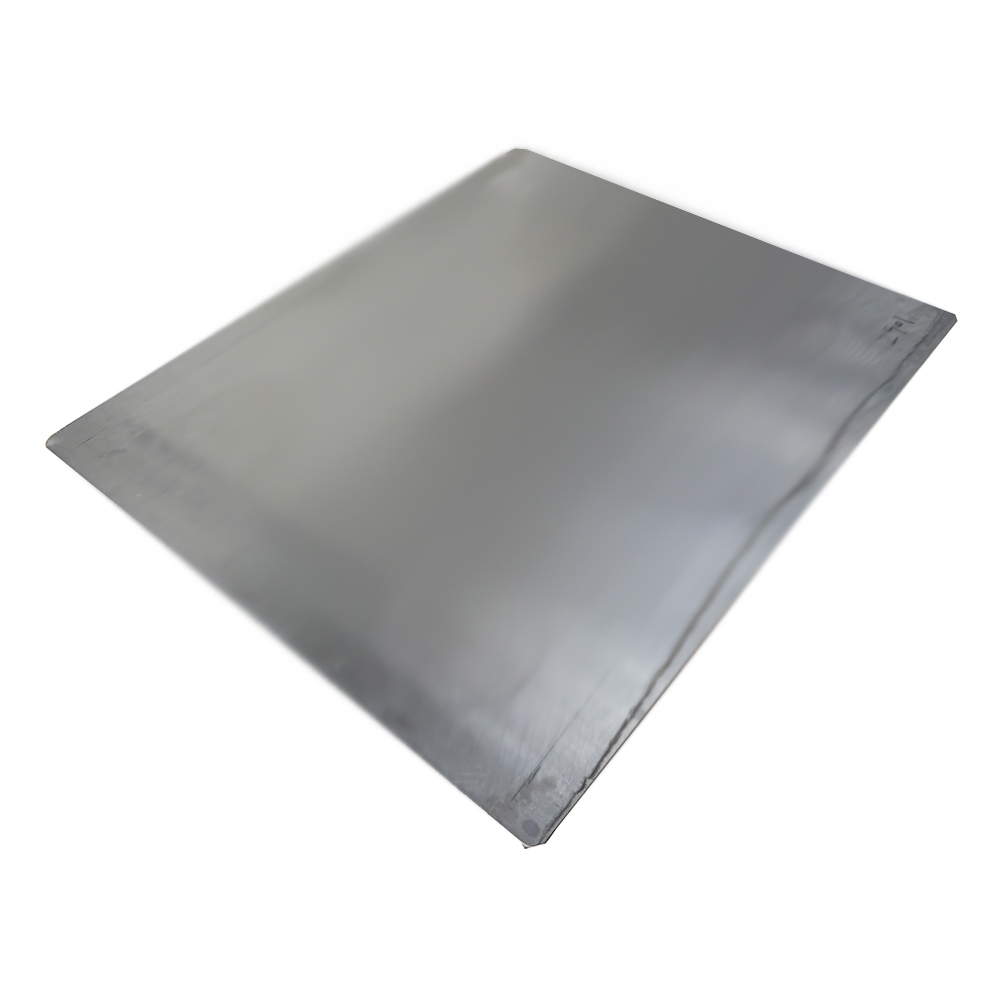

2mm – 10mm lead plate is the main specification of our company's thin radiation resistant lead plate series, which is made of high-purity 1 # electrolytic lead (Pb ≥ 99.994%) through precision rolling process. This thickness range combines excellent radiation shielding performance with convenient installation and construction, and is widely used in fields such as medical radiation protection, industrial flaw detection, chemical anti-corrosion, and special weighting. It is the most cost-effective shielding solution in low to medium energy X-ray scenarios.
|

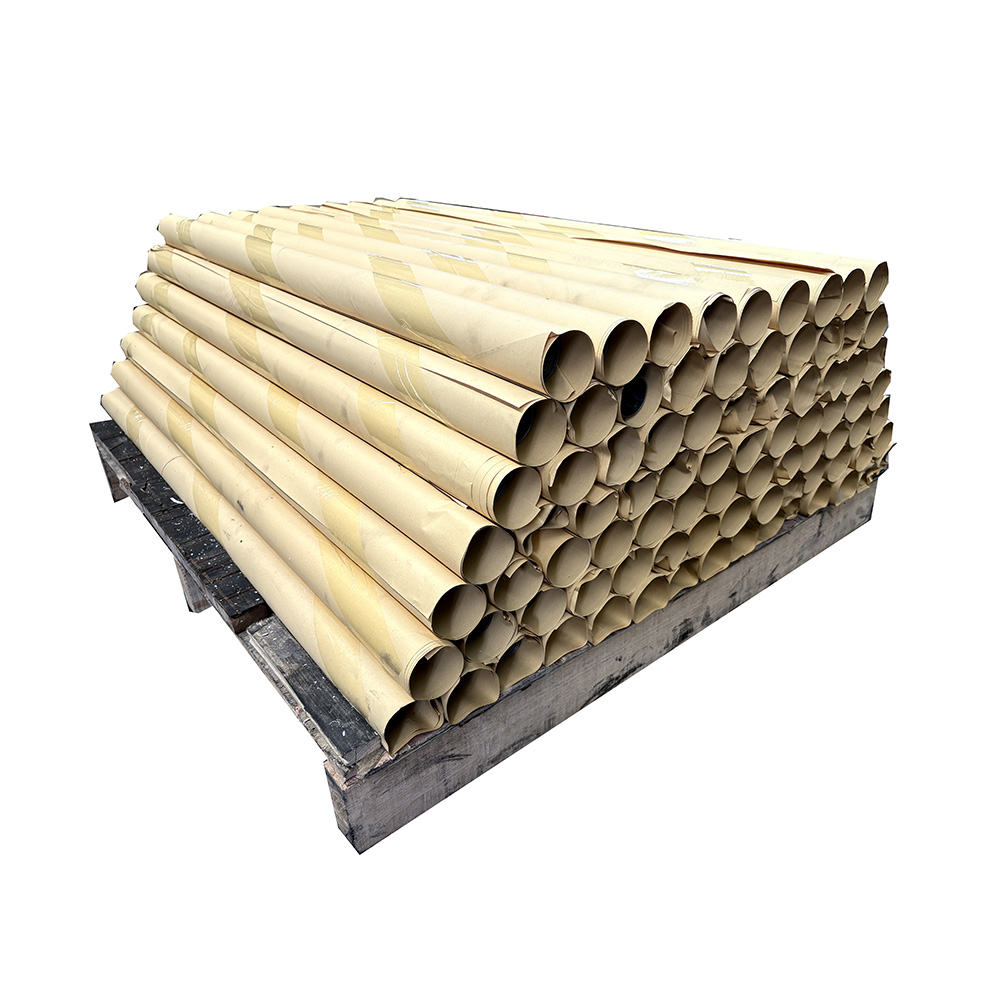

Product Packaging

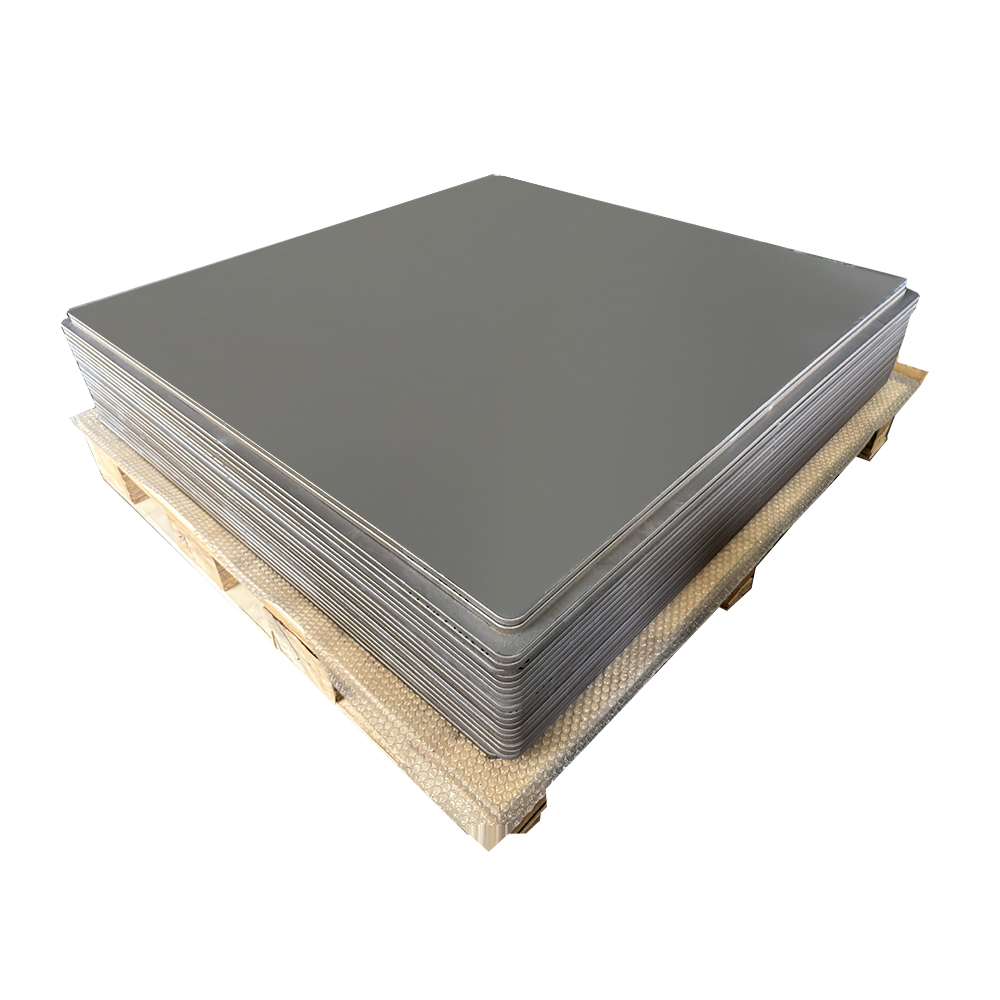

Packaging method: Wooden pallets+steel straps tied, with corner protectors added for protection
Surface protection: optional PE anti oxidation film or kraft paper coating
Transportation mode: road whole vehicle/less than truckload transportation, supporting container sea freight export
Single piece weight limit: recommended ≤ 3 tons/piece for easy forklift loading and unloading

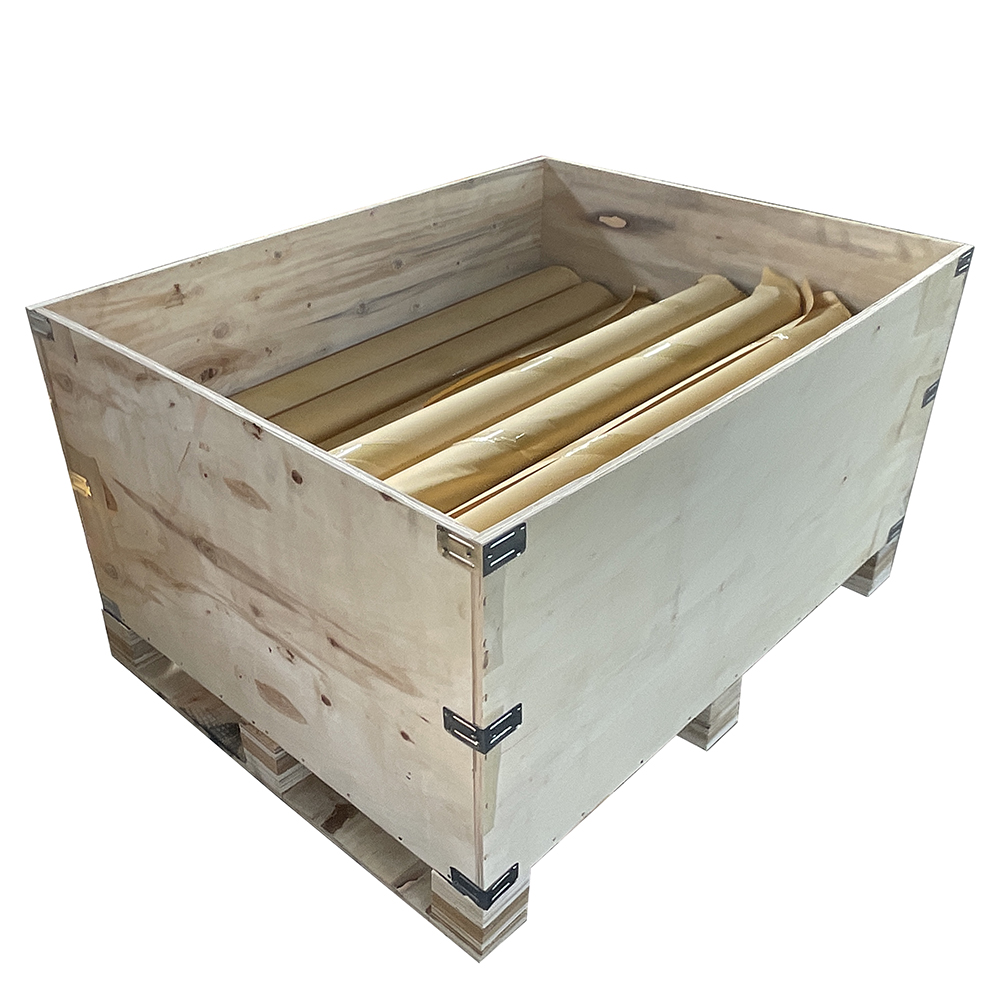

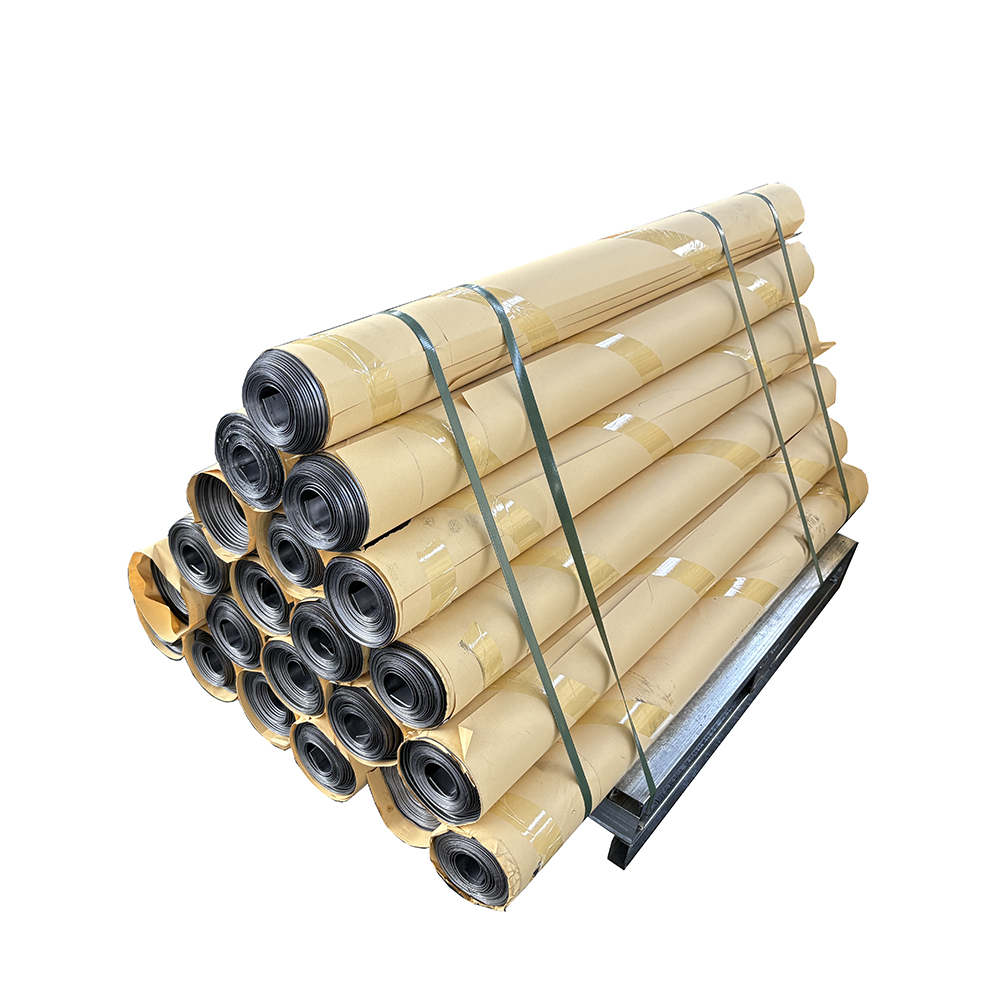

Lead plate packaging
Lead plate packaging
Lead plate packaging
|
Application

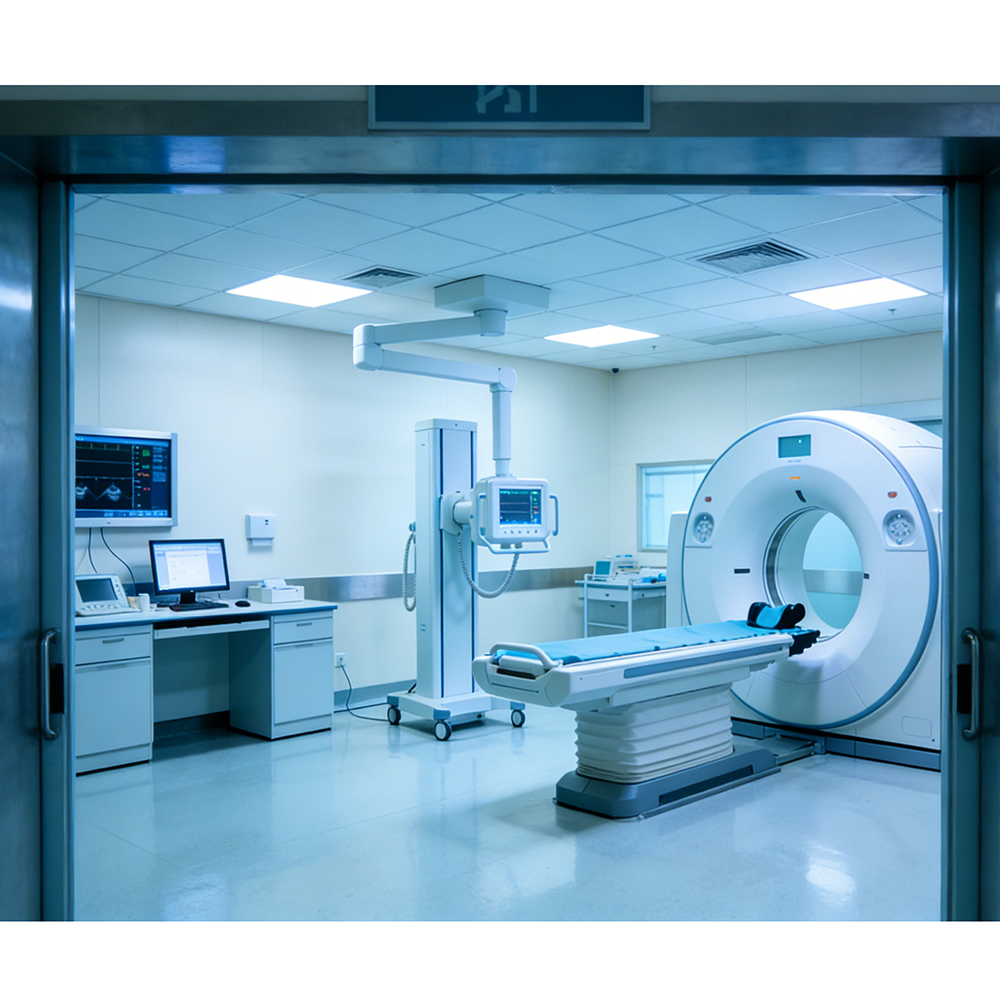

Medical Radiation Protection
Dental X-ray/CBCT room: 2-3mm lead plate, wall and ceiling protection
DR/digital gastrointestinal/fluoroscopy room: 3-5mm lead plate, observation window frame and wall lining
Mammography room: 2-3mm lead plate, precise low-dose radiation shielding
C-arm/mobile X-ray: 3-5mm lead plate, movable lead screen, lead curtain
Pet hospital/veterinary radiology department: 2-5mm lead plate, economical and practical protection solution
Lead protective door lining: 3-10mm lead plate, used in conjunction with steel structure door leaf
Industrial sector
Industrial X-ray Testing: Auxiliary Shielding and Observation Window Protection for 150-300kV Equipment
Chemical anti-corrosion: lining of electrolytic tanks, electroplating tanks, acid pickling tanks, acid and alkali resistant corrosion
Battery manufacturing: anode plate substrate
Sound insulation and shock absorption: machine room, subway tunnel sound insulation layer, precision equipment shock absorption pad
Special counterweights: small mechanical counterweights, precision instrument counterweights
|
Comment & FAQ
Does the thickness error have a significant impact on the protective effect?
A: The impact is significant. According to ICRP standards, when the thickness error exceeds ± 0.1mm, the X-ray shielding rate can be reduced by 5% -8%. Therefore, the anti radiation lead plate requires extremely high processing accuracy.
Can lead plates be directly attached to the wall?
A: 1-5mm thin plate: can be fixed on light steel keel or cement wall with special lead plate adhesive or expansion screws+pressure strips
6-10mm and above: Steel structure support frame (such as 50 × 50mm galvanized square tube) should be used, and direct suspension is strictly prohibited
Do you provide procurement guidance services?
A: We will provide you with the most suitable procurement plan and protective design scheme based on our experience, and help you solve the problem of how much to purchase
|
Lead plate material, composite lead products
2-10mm lead plate is an ideal material for manufacturing various movable/detachable protective equipment:

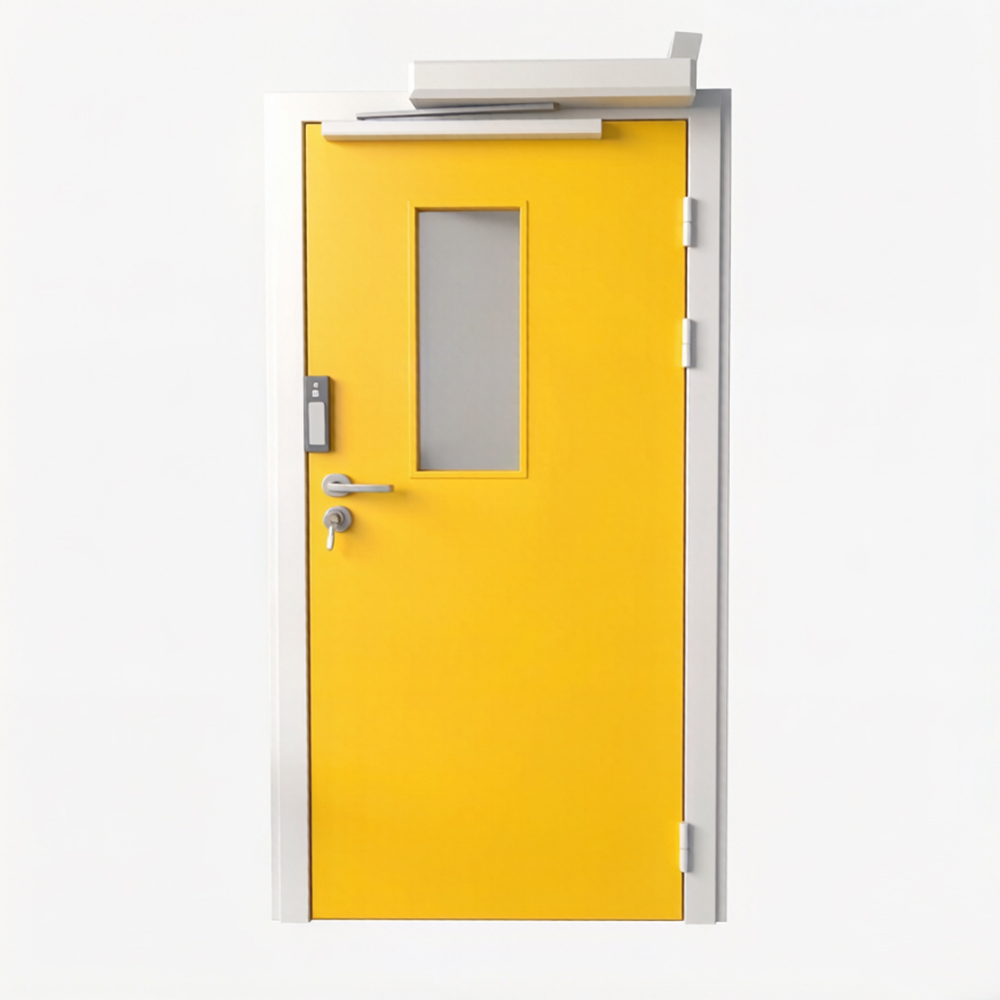

Lead protection door lining: with steel structure door leaf, 3-5mm for ordinary department doors, 8-10mm for high protection requirements door body

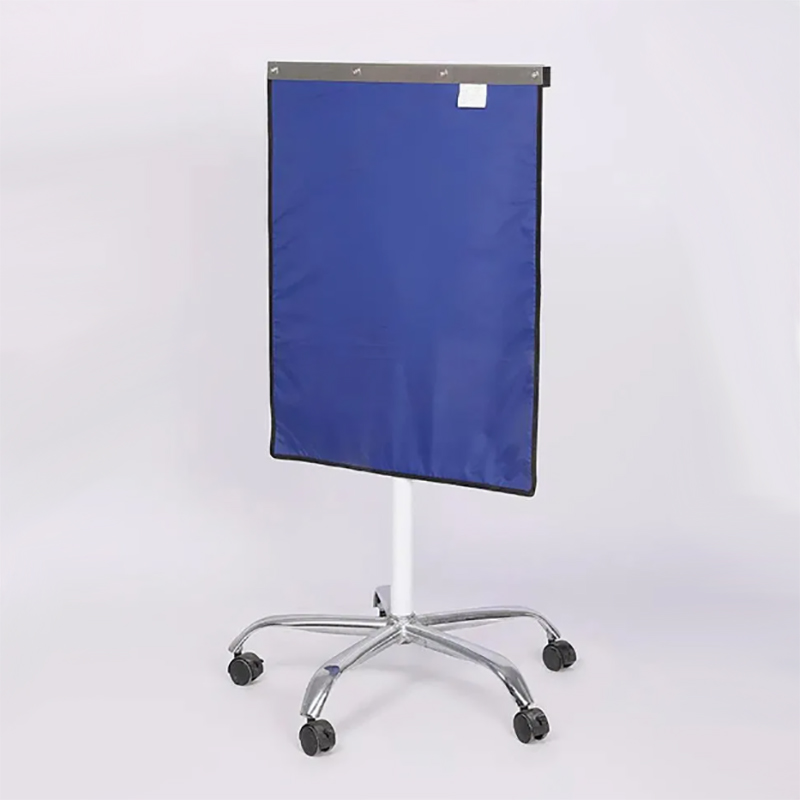

Lead screen/lead curtain: a movable protective screen that facilitates flexible placement in the operating room and intervention room
Lead glass frame/lead window frame: Wrap the edges of the lead glass to prevent radiation from leaking from the frame
Lead room/lead cabinet: the main material of small lead rooms (such as dental photography lead rooms, pet lead rooms)

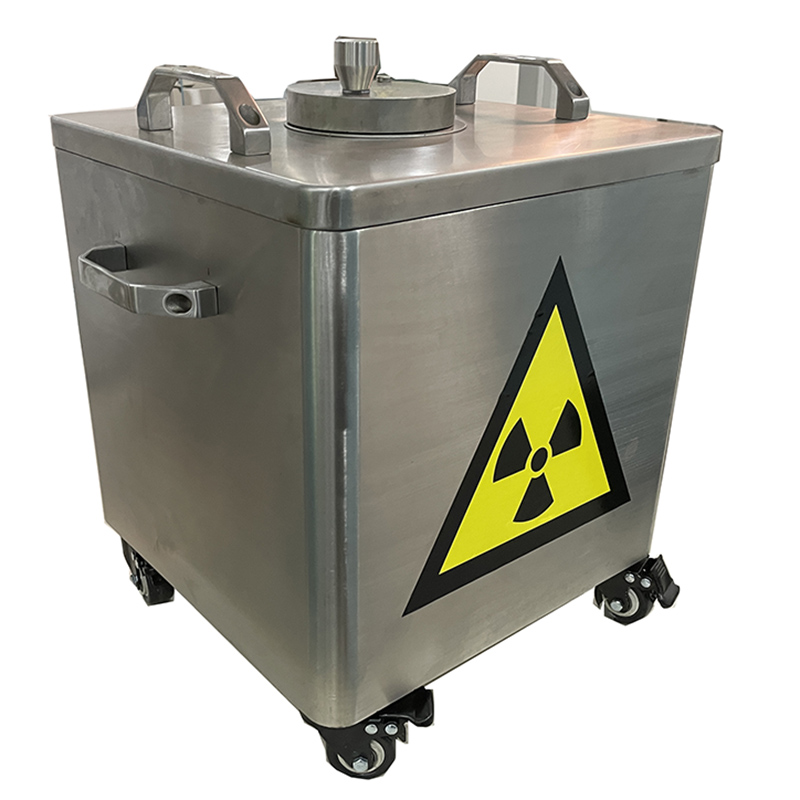

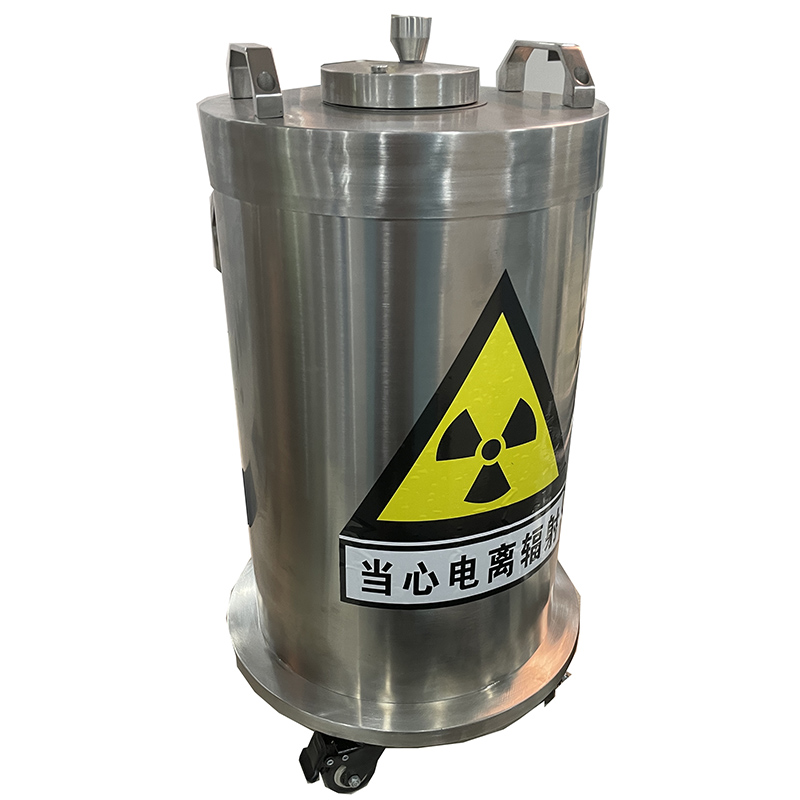

Lead containers/cans: used for storing radioactive drugs or samples
Lead Door

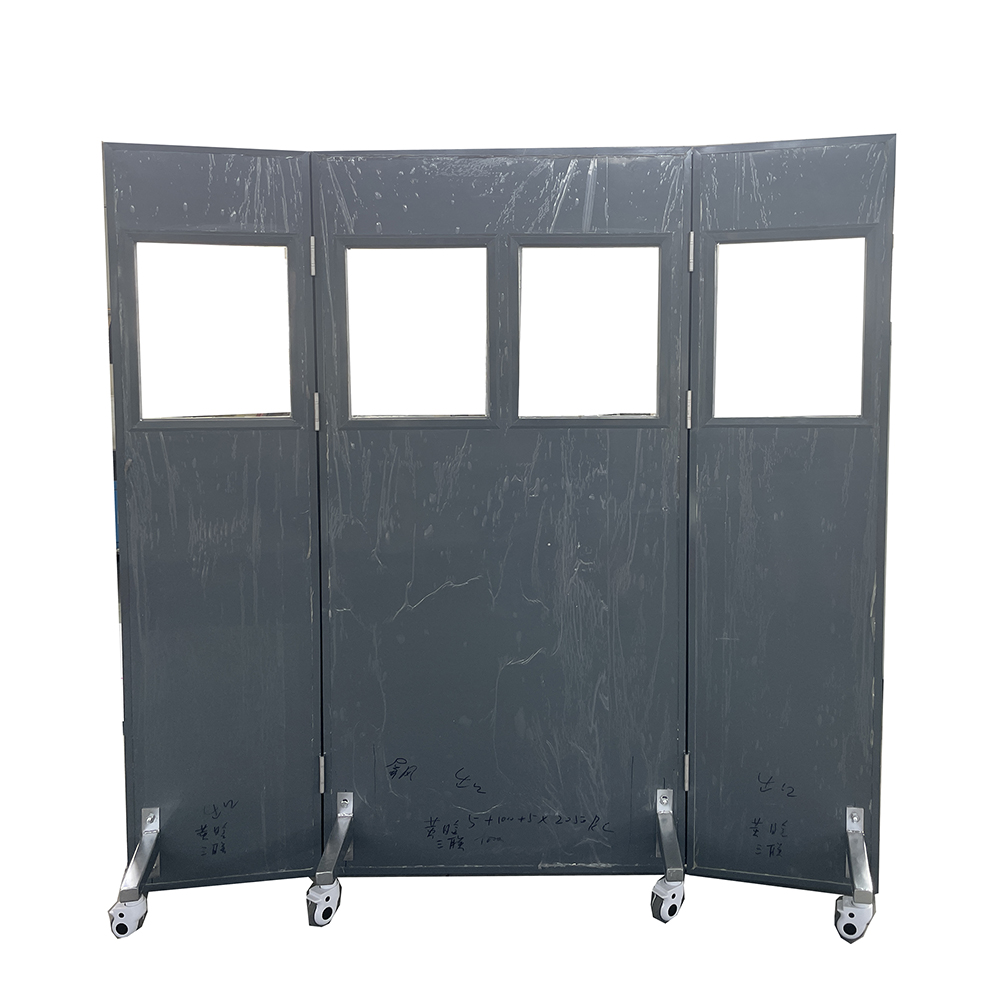

Lead Screen
L-sharp

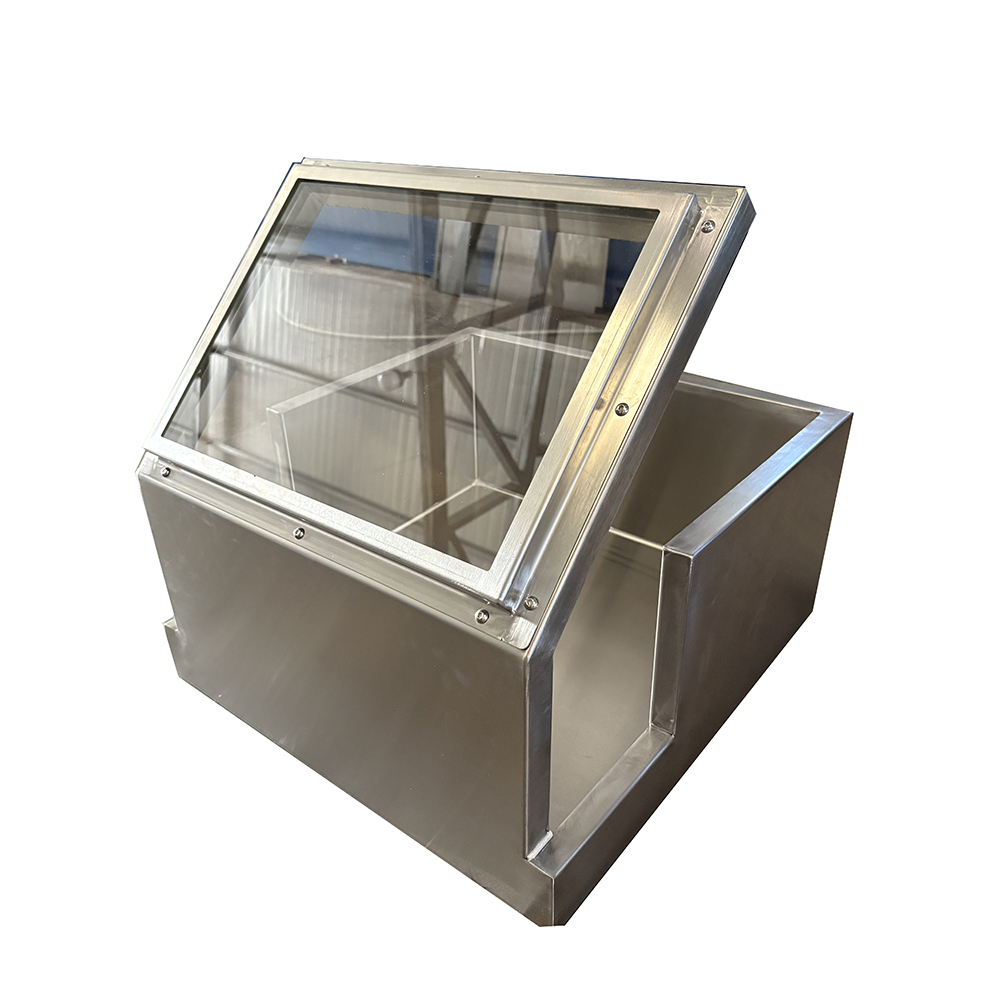

Lead Boxes
Lead Cans
|
Product Advantages
| Advantage | Detailed Instructions |
|---|---|
| ✅ High-purity raw materials | Using 1 # electrolytic lead with extremely low impurity content and stable and reliable shielding performance |
| ✅ Easy installation | 2-5mm can be directly pasted on the wall, 5-10mm can be fixed with light steel keel, without the need for heavy lifting equipment |
| ✅ Low structural load | 2mm only 23 kg/m ², 10mm only 113 kg/m ², suitable for ordinary floor slabs and walls |
| ✅ Flexible processing | Support on-site cutting, bending, and welding, suitable for various irregular spaces |
| ✅ Cost-effective | Compared to thick lead plates, the cost has been significantly reduced, meeting the vast majority of conventional protection needs |
| ✅ Complete range of specifications | Thickness 2-10mm full coverage, customizable width and length to reduce on-site splicing |
| ✅ Environmental compliance | Complies with GB/T 1470 national standard and can provide material testing report |
