How thick is X-ray Lead Glass?
People ask this when planning a control window. It sounds simple. It rarely is.
In real projects, we pick shielding first. Then thickness follows.
So, Lead Glass “thickness” has two meanings. One is physical thickness, mm or inches. The other is shielding value, written as mmPb.
We will keep it practical here. You will learn the common thickness ranges. You will also learn why charts differ.
At the end, you can brief your installer faster. You can also request a quote from Lead Glass suppliers easier.
Core idea: choose mmPb lead equivalency first, then select Lead Glass thickness.
Common use: control-room observation windows, X-ray rooms, dental clinics, NDT viewing panels.
Goal: match the window shielding to the wall partition requirement.
Mini roadmap
We explain common Lead Glass thickness ranges.
We separate physical thickness from mmPb rating.
We share a practical thickness chart table.
We show a step-by-step selection method.
Quick answer: typical X-ray Lead Glass thickness ranges
Most rooms use a few standard Lead Glass builds. They align to common mmPb targets.
Here are the thickness ranges you will see most often.
About 7 mm (≈ 1/4"): often used around 1.6 mmPb at typical X-ray energies.
About 8–9 mm (≈ 5/16"–3/8"): often used around 2.0 mmPb.
About 14–17 mm (≈ 9/16"–11/16"): often used for 3.0–3.3 mmPb targets.
Those numbers are common, not universal. Different Lead Glass families vary. Test conditions vary too.
So, do this every time. Ask for the mmPb certificate. Ask for the kVp used in the test.
| Typical mmPb target | Typical physical thickness | Where it often shows up | Notes |
|---|---|---|---|
| ≈ 1.6 mmPb | ≈ 7 mm (≈ 1/4") | Many general control windows | Confirm kVp and project requirement. |
| ≈ 2.0 mmPb | ≈ 8–9 mm (≈ 5/16"–3/8") | Higher scatter areas, busier rooms | Listings differ by glass model. |
| ≈ 3.0–3.3 mmPb | ≈ 14–17 mm (≈ 9/16"–11/16") | Higher demand specs, some NDT needs | Heavier panels. Stronger frames help. |
Quick tip
If you only know one thing, know this. mmPb drives the decision. Thickness follows it.
What “thickness” means for X-ray Lead Glass
People mix two ideas. It causes bad orders. It also causes failed inspections.
1) Physical thickness
Measured in mm or inches.
It affects weight, handling, framing, shipping risk.
It does not guarantee shielding by itself.
2) Lead equivalency (mmPb)
Written as “1.6 mmPb”, “2.0 mmPb”, “3.2 mmPb”.
It means Lead Glass attenuates like a lead sheet, same mmPb value.
It depends on X-ray energy, usually expressed as kVp.
Why 2 mmPb Lead Glass is not “2 mm thick”
mmPb is a shielding rating. It is not a thickness unit for glass.
Lead Glass uses heavy metal oxides. It attenuates X-rays well. Still, it is glass.
So a “2.0 mmPb Lead Glass” panel may measure 8 mm. Another model may measure 9 mm.
What must be stated on a real certificate
mmPb rating.
Test kVp range, or a stated reference point.
Product name or model family.
Panel thickness and tolerances.
Simple rule we use
If the wall requires 2.0 mmPb, the window should match 2.0 mmPb. Do not guess.
Lead Glass thickness chart (mmPb → thickness)
This is the section most buyers want. We keep it clear and practical.
Use it as a starting point. Then confirm by product certification.
Table A: mmPb target → typical physical thickness
| mmPb rating (Lead Glass) | Typical thickness (mm) | Typical thickness (inch) | Common ordering language |
|---|---|---|---|
| ≈ 1.6 mmPb | ≈ 7 mm | ≈ 1/4" | “1/4 inch Lead Glass” |
| ≈ 2.0 mmPb | ≈ 8–9 mm | ≈ 5/16"–3/8" | “2.0 mmPb Lead Glass window” |
| ≈ 3.0 mmPb | ≈ 14–15 mm | ≈ 9/16" | “3.0 mmPb X-ray Lead Glass” |
| ≈ 3.2–3.3 mmPb | ≈ 17 mm | ≈ 11/16" | “High-lead-equivalent Lead Glass” |
Table B: “lead equivalent inch” terms installers still use
Some teams speak in lead sheet thickness. They say “1/16 lead”. They mean lead equivalency.
| Lead equivalency term | Approx mmPb | Typical physical Lead Glass thickness | How it shows up in quotes |
|---|---|---|---|
| 1/16" lead equivalent | ≈ 1.6 mmPb | ≈ 5/16" Lead Glass (varies) | “1/16 lead eq safety glass” |
| 3/32" lead equivalent | ≈ 2.4 mmPb | ≈ 3/8" Lead Glass (varies) | “3/32 lead eq Lead Glass” |
| 1/8" lead equivalent | ≈ 3.2 mmPb | ≈ 1/2" Lead Glass (varies) | “1/8 lead eq X-ray glass” |
Why charts disagree
Different Lead Glass formulas. Different densities.
Different kVp assumptions, also test geometry.
Laminated builds add total thickness, plus interlayers.
Some vendors publish “typical”. Others publish “nominal”.
Fast check
If a quote lists thickness only, ask again. Request the mmPb rating and test kVp.
How to choose the right X-ray Lead Glass thickness
Let’s turn confusion into a repeatable method. You can do it in minutes.
Step 1: name the room and modality
Dental X-ray rooms.
General radiography rooms.
Fluoro or cath labs.
CT rooms.
NDT inspection bays.
Each one drives kVp and workload. It changes the shielding requirement.
Step 2: get the required shielding value (mmPb)
Look at your shielding report, if you have one.
Ask the project physicist, if one is involved.
Ask the authority having jurisdiction, if required.
Do not guess here. It saves money later.
Step 3: match the window to the partition
If the wall needs 2.0 mmPb, order 2.0 mmPb Lead Glass. Same value.
This rule keeps continuity. It also reduces weak points around frames.
Step 4: decide on safety glazing needs
Low-mounted windows risk impact. Safety glazing helps.
Door vision panels often need laminated Lead Glass.
Busy corridors raise risk. Plan for it.
Laminated Lead Glass can add total thickness. The mmPb rating still must match.
Step 5: confirm documentation and details
mmPb certificate, plus test kVp reference.
Panel size, tolerances, edge finish.
Any cutouts, also holes, if needed.
Labeling requirements for inspections.
Buyer checklist (copy, paste, send)
| Item | What you provide | Why it matters |
|---|---|---|
| Required mmPb | Example: 2.0 mmPb Lead Glass | Defines shielding performance. |
| Modality and kVp | Example: general X-ray, up to 150 kVp | Supports correct certificate reference. |
| Visible glass size | Width × height | Drives fabrication and frame sizing. |
| Mount location | Wall or door vision panel | Impacts safety glazing choice. |
| Edge finish | Seamed or polished | Affects durability and handling risk. |
Share those details and we can guide the build. Lead Glass becomes easy then.

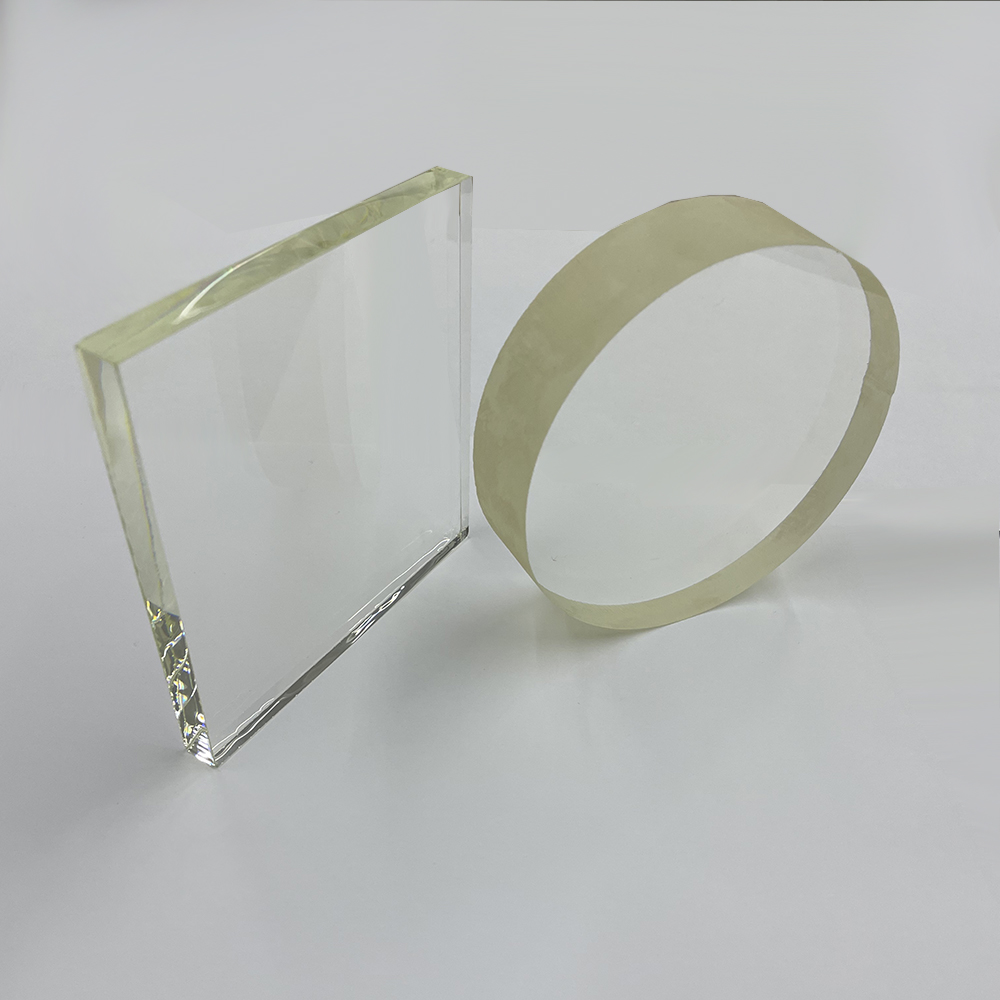

X-ray Lead Glass product types
Lead Glass is not one single product. They sell it in a few builds. Each build changes handling, safety, price, sometimes total thickness.
Standard (annealed) Lead Glass. Clear, heavy, direct. Great for many fixed control windows.
Laminated / Safety Lead Glass. Two glass plies, an interlayer. Safer if impact happens. Often used in doors, low windows, busy corridors.
Insulated units (IGU). Multiple panes, sealed airspace. Helps comfort, condensation control, noise.
Specialty builds. Privacy finishes, curved panels, circular ports, thicker “blocks” for specific projects.
| Lead Glass type | What it is | Why people choose it | How it affects thickness |
|---|---|---|---|
| Standard (annealed) | Single Lead Glass pane | Simple installs, clear viewing | Usually the thinnest total build for a given mmPb |
| Laminated / Safety | Lead Glass + interlayer + Lead Glass | Impact safety, reduced shard risk | Total build thicker, mmPb rating still specified separately |
| IGU | Lead Glass + spacer + glass | Thermal comfort, condensation control | Total build much thicker, depends on spacer depth |
| Specialty | Privacy, curved, ports, blocks | Unique room needs, custom layouts | Can be thicker, sometimes far thicker than “standard” sheets |
Quick callout
If someone says “we need safety glass”, ask one more question. Do they mean laminated Lead Glass, or a protected mounting system. It changes the quote fast.
Lead Glass material basics
Lead Glass looks like regular glass. It does a very different job. It uses heavy metal oxides, high density, strong X-ray attenuation.
What it is made for
High density, so it attenuates X-rays well.
High clarity, so staff can see patients and equipment clearly.
Stable color, so it stays usable across years of typical exposure.
What you can expect visually
Neutral to slight tint. It varies by glass family.
Clean edges, better when polished.
Excellent visibility, ideal for observation windows.
Weight matters more than people expect
Lead Glass feels heavy. Frames must handle it. Installers notice it immediately.
Simple weight estimator
Use it for planning lifts and frames. It is an estimate. We still confirm final weights per product.
Estimated weight (kg) ≈ Area (m²) × Thickness (m) × Density (kg/m³) Example: Area 0.60 m × 0.90 m = 0.54 m² Thickness 0.009 m (9 mm) Assume density 5000 kg/m³ for a planning estimate Weight ≈ 0.54 × 0.009 × 5000 ≈ 24.3 kg
Same panel in laminated form. It climbs again. So we plan for it early.
| Planning item | Why it matters | What we do |
|---|---|---|
| Panel weight | Frames, anchors, handling safety | Estimate early, confirm on submittal |
| Optical clarity | Operator comfort, patient visibility | Pick the correct glass family, request samples if needed |
| Edge finish | Chips, durability, handling risk | Seamed for basic installs, polished for exposed edges |
Installation details people forget
Lead Glass can meet the mmPb spec, still fail the room. Gaps do it. Bad frames do it. Weak overlaps do it.
Keep shielding continuous
Wall shielding should overlap into the frame area.
Frame should include lead lining, or a proven shielding design.
Glass should sit behind a shielding “return”, so radiation cannot sneak around edges.
Simple frame concept diagram
[Lead-lined wall] [Frame lead return] |================|______ | | \ | Lead Glass | ) <-- lead return blocks edge leakage | |______/ |================|
Rough opening, glass size, bite depth
These get confused. It delays projects.
Rough opening. The hole in the wall.
Frame opening. The clear opening inside the frame.
Glass size. The cut size, larger than visible area.
Bite depth. How much the frame overlaps the glass edge.
Edgework choices
Seamed. Basic safety, good for hidden edges.
Polished. Cleaner look, less chip risk on exposed edges.
Beveled. Mostly aesthetic, used less often for shielding windows.
| Install question | What you answer | Why it helps |
|---|---|---|
| Wall shielding value | Example: 2.0 mmPb partition | We match Lead Glass mmPb, avoid weak points |
| Mount type | Fixed wall frame or door vision panel | It drives safety glazing, hardware, thickness |
| Visible opening | Width × height | We derive glass size and bite depth |
| Edge finish | Seamed or polished | It controls chip risk and appearance |
Handling notes
They should carry it vertical. They should protect edges. Edges chip first.
Maintenance, cleaning, lifespan
Lead Glass lasts a long time in normal rooms. It still needs basic care. Cleaning errors show up fast.
Cleaning do’s
Use soft cloths, clean microfiber.
Use mild glass cleaner, test a small corner first.
Rinse residue, then dry it fully.
Cleaning don’ts
Abrasive pads. They scratch it.
Harsh powders. They haze the surface.
Strong solvents on laminated edges. They can stress interlayers.
Inspection checklist
| What to check | What you might see | What it means | What we do next |
|---|---|---|---|
| Edges | Small chips, flakes | Handling damage, frame stress | Stabilize, review frame bite and pads |
| Laminated units | Haze, edge bubbles | Interlayer stress, moisture entry | Check seals, confirm cleaning method |
| IGU | Fogging between panes | Seal failure | Replace IGU, review condensation control |
| Frames | Gaps, loose trim | Shielding discontinuity risk | Re-secure, re-check lead returns |
Lifespan reality
If the frame stays solid, if seals stay dry, it performs for years. Most replacements happen due to remodels, door upgrades, or installation issues.
Standards, compliance, spec language
Most projects want clean documentation. Inspectors want proof. We make it easy when we specify it clearly.
What a “good spec” includes
Required mmPb rating, plus reference kVp.
Glass type. Standard, laminated, IGU.
Dimensions, tolerances, edge finish.
Frame requirements, shielding continuity expectations.
Submittals. Certificates, drawings, labels.
Spec template you can copy
X-ray Lead Glass Window Panel - Product: Lead Glass for diagnostic X-ray shielding - Lead equivalency: ____ mmPb (certified) - Reference energy: ____ kVp (stated on certificate) - Glass build: Standard / Laminated / IGU - Thickness: ____ mm (nominal) - Size: ____ (W) × ____ (H), quantity ____ - Edge finish: Seamed / Polished - Documentation: mmPb certificate, product ID, fabrication drawing - Frame: Provide shielding continuity, lead returns, no edge leakage paths
Local rules still matter
They vary by jurisdiction. They vary by facility policy. We follow the shielding report, or the authority guidance, then match the Lead Glass to it.
Cost drivers
Price surprises happen. It helps to see what drives it.
mmPb rating. Higher rating, heavier glass, more cost.
Panel size. Larger areas increase material and break risk.
Build type. Laminated, IGU, specialty finishes raise cost.
Edgework. Polished edges cost more than seamed.
Custom cuts. Holes, notches, ports, curves add labor.
Shipping. Heavy crates, special carriers, higher insurance.
| Choice | Cost impact | What you get |
|---|---|---|
| Higher mmPb | ↑ | More attenuation, more margin |
| Laminated build | ↑↑ | Impact safety, safer failure mode |
| IGU build | ↑↑ | Comfort, condensation control, acoustics |
| Polished edges | ↑ | Cleaner look, better exposed-edge durability |
Common mistakes
We see the same issues. They are avoidable.
Ordering by mm thickness, skipping mmPb.
Ignoring modality and kVp.
Mismatching window mmPb vs wall mmPb.
Forgetting safety glazing needs in doors.
Skipping frame shielding continuity details.
Not requesting a certificate or product ID.
Fast decision check
Do we know required mmPb? - No → get shielding report or authority guidance - Yes → match Lead Glass mmPb Is it a door or low-mounted panel? - Yes → consider laminated safety Lead Glass - No → standard may work Do we need comfort or condensation control? - Yes → consider IGU build - No → single pane may work
Buyer checklist
Send this list. We can quote faster. They can install faster. You get fewer change orders.
| Field | Example | Why we ask |
|---|---|---|
| Required lead equivalency | 2.0 mmPb Lead Glass | It defines shielding performance |
| Room type / modality | General radiography control window | It supports correct glass selection |
| Max kVp | Up to 150 kVp | It aligns certificate reference |
| Visible opening | 600 × 900 mm | We calculate glass cut size and bite |
| Mount location | Wall frame, not a door | It affects safety glazing needs |
| Build type | Standard / Laminated / IGU | It controls total thickness and cost |
| Edge finish | Seamed edges | It affects chip risk and appearance |
| Special details | No holes, no notches | It controls fabrication complexity |
| Documentation | mmPb certificate + product ID | It supports inspections and records |
One more thing
If you already have a shielding report, send it. We can match Lead Glass to the partition requirement cleanly.
FAQ
How thick is X-ray Lead Glass for 2.0 mmPb?
Often around 8–9 mm physical thickness. It varies by glass family and certification conditions, so we confirm it per product.
What does mmPb mean on Lead Glass?
It is a shielding rating. It compares attenuation to solid lead, same mm thickness, under stated test conditions.
Is thicker Lead Glass always safer?
Not automatically. mmPb rating matters more. Poor frames and gaps can defeat a thick panel. We keep shielding continuous.
Why do different suppliers show different thickness for the same mmPb?
Different glass chemistry, density, test methods, plus different kVp references. So we read certificates, not marketing tables.
Do I need laminated Lead Glass?
If impact risk exists, doors, low windows, high traffic areas. It helps. For fixed control windows, standard Lead Glass can be enough.
Can Lead Glass be cut on site?
We avoid it. It chips easily. It also risks edge damage. We fabricate to final size at the shop, then install carefully.
How do we match Lead Glass to a lead-lined wall?
We match mmPb to the partition requirement. Then we design the frame so shielding stays continuous around the glass perimeter.
How do we clean it safely?
Soft cloth, mild cleaner, gentle pressure. Avoid abrasives. Avoid harsh powders. Dry it fully, so residue does not build.
Get the right Lead Glass thickness the first time
If you know your required mmPb, we can guide the correct Lead Glass build. If you only know the room type, we can still help you collect the right inputs.
Share required mmPb, or share the shielding report.
Share window size and mounting location.
Tell us standard, laminated, or IGU preference.
We keep it simple. We verify the mmPb requirement. We match the Lead Glass. We support documentation for your records.
Helpful internal links
Next step
Visit www.st-shield.com and send your window details. We will recommend the right Lead Glass thickness, plus the best build for your room.
